304/304L Stainless steel ball

304/304L Stainless steel ball

AISI 304/304L DIN 1.4301/1.4307 GB 0Cr18Ni9/00Cr19Ni10 SUS 304/304L1.Characteris

AISI 304/304L DIN 1.4301/1.4307 GB 0Cr18Ni9/00Cr19Ni10 SUS 304/304L

1.Characteristics

Excellent resistance to corrosion by organic chemicals and therefore excellent in chemical, pharmaceutical or related fields of high chemical stress, with partial magnetic properties that can be removed by heat treatment.

2.Applications

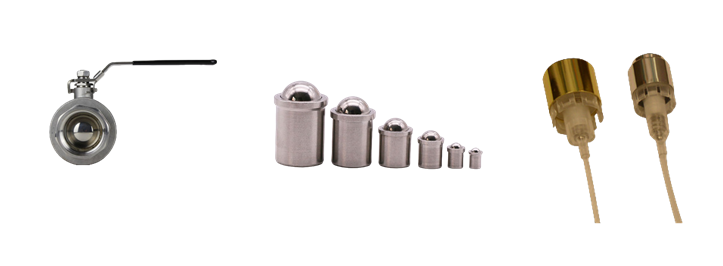

Perfume spray pump, aerosol pump, medical equipment valve, textile, spray gun, positioning bead, ball for comestic balls for Pharmaceutical etc

3. product information

Diameter1.3mm 1.4mm 1.5mm 1.7mm 1.8mm 2mm 2.381mm 2.5mm 2.778mm 3mm 3.175mm 3.5mm 3.969mm 4mm  4.762mm to 12.7mm

GradeG40 G100 G200 G500 G1000

ISO 3290/DIN5401/AFBMA

Materials

C

Si

Mn

P

S

Ni

Cr

304

0.08

1.00

2.00

0.045

0.030

8.0~10.5

18.0~20.0

304L

0.03


1.00

2.00

0.045

0.030

8.0~13.0

18.0~20.0
