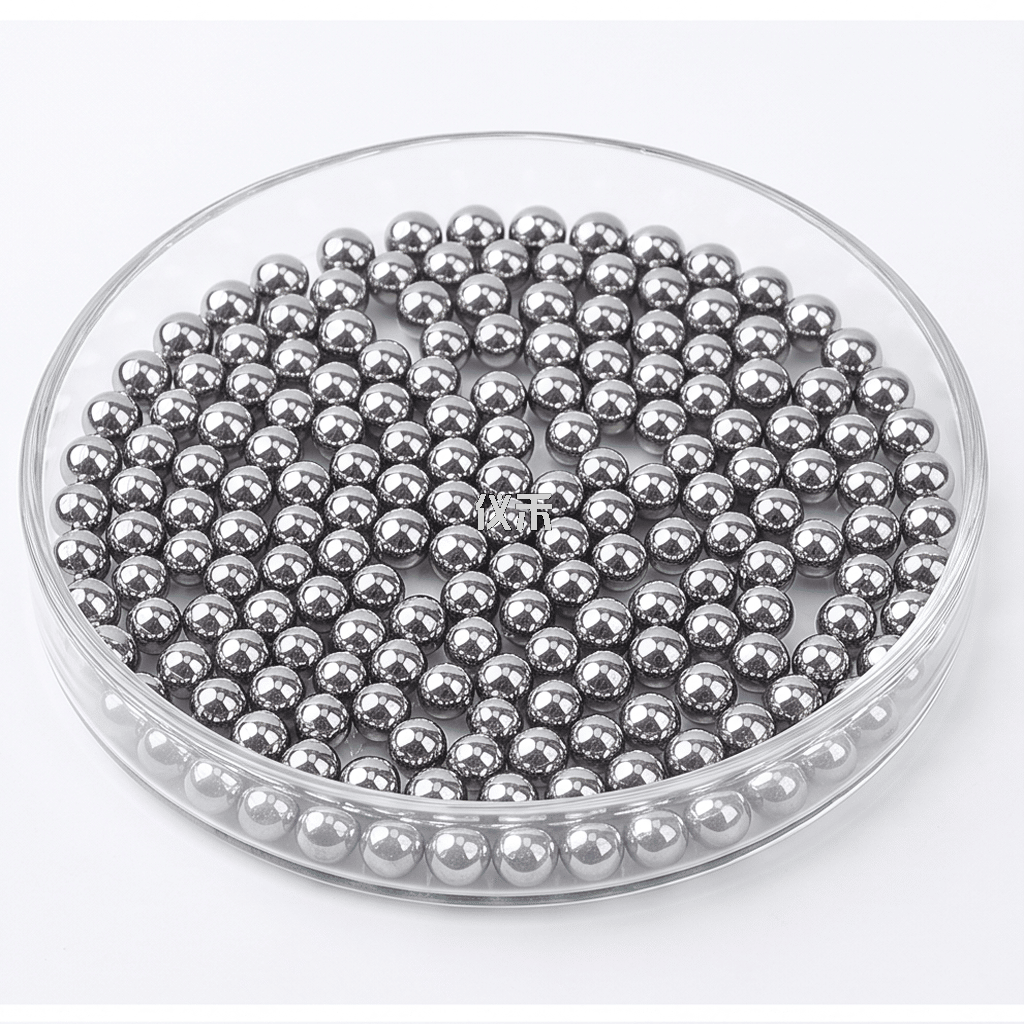

420/420C Stainless steel ball
1. Material:AISI420/420C SUS420/420C DIN1.4028/1.4034 GB3Cr13/4Cr13/5Cr13
2. Size:1mm-12.7mm
3. Grade: G10 G20 G40 G80 G100 G200 G500 G1000
4. Hardness: 55~60HRC
5. Certificate: ISO-9001:2015, RoHs, SGS
6. Features: 420/420C stainless steel is martensitic steel with medium to good corrosion resistance and good material strength. It can resist corrosion from alcohol, ammonia, food environment, fresh water, many petroleum products and organic materials, and some weak acid environments, and is suitable for working environments with ordinary requirements for stainless steel.
7. Application: Applicable to various precision machinery, precision stainless steel bearings, automobile distribution valves, natural gas, auto parts, medical equipment, valves, lighters, writing tools, refineries, casters, fishing gear, lamps, electrical, equipment, instruments, meters, transportation vehicles, household appliances. It is mostly used to manufacture parts resistant to corrosion by the atmosphere, water vapor, water and oxidizing acids.
Wulian Yihe 420 stainless steel balls have uniform roundness, fine surface, high finish, stable quality, high corrosion resistance and other advantages (salt spray corrosion test complies with DIN EN 60068-2-11, test Ka, spraying for 8 hours and resting for 4 hours as a cycle, and there is no red rust on the surface after 12 cycles.).
材料 | 420（3Cr13） | 420C（4Cr13） | 420C（5Cr13） |
C | 0.26-0.35 | 0.36-0.43 | 0.36-0.50 |
Si | ≤1.00 | ≤0.80 | ≤0.60 |
Mn | ≤1.25 | ≤0.80 | ≤0.80 |
P | ≤0.04 | ≤0.04 | ≤0.035 |
S | ≤0.03 | ≤0.03 | ≤0.03 |
Ni | ≤0.60 | ≤0.60 | ≤0.60 |
Cr | 12.00-14.00 | 12.00-13.50 | 12.00-14.00 |
The unique make up of our type 420 stainless steel balls makes it a desirable option for our customers. Like all stainless steel, this grade type is a metal alloy. Alloys are the result of a variety of different metals such as chromium, nickel, and iron. 420 stainless steel’s properties are as follows:
This composition leaves you with a material that has a density of 7.74 g/cm3. Our 420 stainless steel’s hardness is a minimum of 48. It can also handle between 95,000 – 250,000 PSI.
Advantages
When this material hardens and tempers it has full corrosion resistance. Our type 420 stainless steel balls are resistant to alcohol, ammonia, food environment, fresh water, petroleum, and other corrosion.
This grade of steel is extremely strong, which makes it ideal for an assortment of uses.
You can find our high-quality type 420 stainless steel balls in various industries including agricultural, automotive, cosmetic, and energy. Due to the material’s natural resistance to water, steam, air, and gasoline corrosion, it is the ideal choice for industries such as energy and agricultural.
